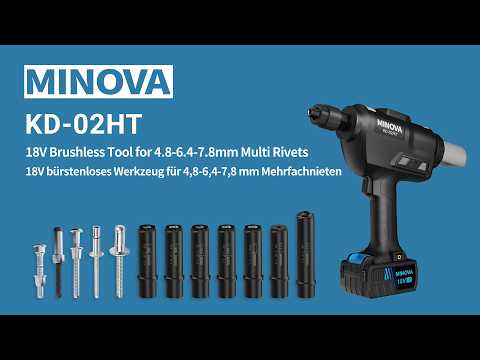

KD-02HT - 18V cordless brushless structural tool for lockbolts and Heim-lok

The KD-02HT is a heavy-duty 18V cordless brushless riveting tool delivering 30kN of pulling force and a long 31mm stroke for demanding structural work. Purpose-built for wide-range grip rivets, lockbolts and Heim-lok fasteners, its brushless motor provides extended service life and superior durability.

Specifications

• Fastener capacity: Wide Range Grip 4.8mm (3/16") & 6.4mm (1/4"); Lockbolt 4.8mm (3/16") & 6.4mm (1/4"); Heim-lok 7.8mm (5/16") & 6.4mm (1/4")

• Pull force: 30kN (6800 lbf)

• Stroke: 31mm (1.2")

• Net weight: 2.20 kg with battery adaptor

• Battery required: minimum 18V / 4.0Ah

• Service life: 50,000 cycles (based on 7.8mm / 5/16" Heim-lok rivet)

Features

• Brushless motor for extended service life and superior durability

• 30kN high pulling force with long stroke for multifunctional use

• Anti-drop shoulder strap protects the tool from fall impacts

• Purpose-built for wide-range grip, lockbolt and Heim-lok fasteners

Rivets per charge (18V / 4.0Ah battery, steel rivet)

• Wide Range Grip: 4.8mm approx. 1,100 pcs; 6.4mm approx. 500 pcs

• Lockbolt: 4.8mm approx. 1,100 pcs; 6.4mm approx. 500 pcs

• Heim-lok: 7.8mm approx. 700 pcs; 6.4mm approx. 800 pcs

Includes: KD-02HT tool (excludes nose assemblies), 1 battery adaptor of choice, special wrench, belt clip and wrench, single shoulder strap assembly, and a high-quality tool box.

Battery not included. This tool runs on your own 18V cordless battery. Choose your battery brand (DeWalt, Bosch, Makita or Milwaukee) and the matching adaptor is supplied with the tool.
