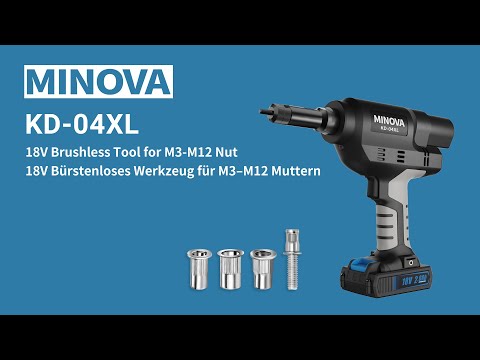

KD-04XL - 18V cordless brushless rivet nut tool

The KD-04XL is an 18V cordless brushless rivet nut tool built for high-volume rivet nut and rivet stud setting across a wide range of sizes and materials. Its brushless motor delivers enhanced durability and longevity, while automatic feeding and retraction with an electronically adjustable stroke makes repeat setting fast and consistent. An on-tool display intelligently tracks and shows the number of rivet nuts or studs set.

Specifications

• Pull force: 24kN (5400 lbf)

• Stroke: 10mm (0.4")

• Net weight: 2.30 kg with battery adaptor

• Battery required: minimum 18V / 4.0Ah

• Mandrel range: M4–M12 (M3 and UNC available as optional extras; long mandrels for extra-long rivnuts available as optional extra)

• Service life: 200,000 cycles (based on M6 / 1/4-20 UNC rivet nut)

Features

• Brushless motor for enhanced durability and longevity

• Suitable for rivet nuts and rivet studs of different sizes (M3–M12) and materials

• Automatic rivet nut/stud feeding and retraction with electronically adjustable stroke

• Intelligent tracking and on-tool display of the quantity set

• Can be paired with the MINOVA AC/DC power converter

Includes: KD-04XL handle, M4–M12 mandrel, special wrench and high-quality tool box.

Battery not included. This tool runs on your own 18V battery via the adaptor you select above.
