Aluminium Rivets Sizes

Aluminium rivets are a staple in various industries for their durability, lightweight properties, and ease of use in joining materials. When it comes to selecting the right aluminium rivet size for your project, several factors must be considered to ensure optimal performance and reliability.

Understanding Aluminium Pop Rivets Sizes

Aluminium pop rivets, also known simply as rivets, consist of a body and a dome head and are designed to permanently secure two or more materials together. Due to its versatility and strength, aluminium pop rivets are widely used in the construction, automotive, aerospace, and manufacturing industries.

Key Components of Aluminium Rivets:

1. Diameter: The diameter of an aluminium rivet refers to the width of the rivet shaft. Common diameters range from 2.4 cm (3/32 inch) to 6.4mm (1/4 inch).
2. Grip Range: This refers to the maximum and minimum thickness of materials that the rivet can effectively join. It's crucial to select a rivet with an appropriate grip range to ensure a secure fit.
3. Length: The length of the rivet shaft is important as it determines how far the rivet extends into the materials being joined.

Factors to Consider When Choosing Aluminium Rivet Sizes

To ensure the two materials you are joining together are properly sealed, consider these factors;

1. Material Thickness

The thickness of the materials you are joining is a critical factor in determining the size of the rivet needed. If the rivet is too short, it may not effectively join the materials, while an excessively long rivet can weaken the joint.

2. Load Requirements

Consider the load-bearing capacity required for your application. Thicker and longer rivets generally offer greater strength and load-bearing capabilities. For heavy-duty applications, choose larger-diameter rivets with a suitable grip range.

3. Environmental Factors

Depending on the environment where the riveted joint will be used (e.g., indoors, outdoors, corrosive environments), you may need to select rivets made from specific aluminium alloys or with corrosion-resistant coatings.

4. Application Method

Different types of rivet guns or tools are compatible with specific rivet sizes. Ensure your chosen rivet size matches the tool you intend to use for installation.

Popular Aluminium Rivet Sizes and Their Applications

2.4mm (3/32 inch) Diameter

Ideal for lightweight applications where space is limited. It is commonly used in electronics and model making.

3.2mm (1/8 inch) Diameter

Versatile size is suitable for a wide range of general-purpose applications, including automotive, HVAC systems, and sheet metal assembly.

4.0mm (5/32 inch) Diameter

Provides additional strength compared to smaller sizes, suitable for thicker materials and applications requiring a higher load-bearing capacity.

4.8mm (3/16 inch) Diameter

Used in heavy-duty applications such as construction, structural steelwork, and marine environments where superior strength and durability are essential.

Considerations for Soft Materials

When working with soft materials such as plastics or thin sheets of aluminium, choosing the right aluminium rivet size becomes even more critical. Soft materials require a rivet that can securely hold them without causing damage or deformation. In such cases, opting for a smaller diameter rivet, such as 2.4mm (3/32 inch), ensures that the material remains intact while providing sufficient strength to hold the joint together.

It's essential to carefully match the rivet diameter and length to the thickness of the soft material to prevent over-compression, which could lead to cracking or failure of the joint over time. Additionally, selecting a rivet with a wide grip range allows for variations in material thickness, ensuring a reliable and durable connection.

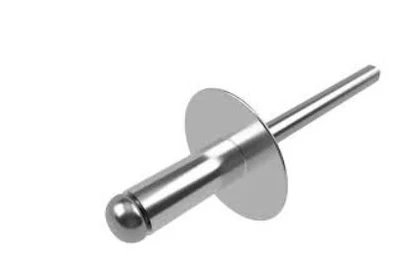

Dealing with Large Flanges

Large flanges, commonly found in automotive and aerospace applications, require aluminium rivets that can effectively clamp and secure the materials in place. A larger diameter rivet, such as 3.2mm (1/8 inch) or 4.0mm (5/32 inch), with a large flange, is ideal for these situations.

The larger flange provides a broader surface area for distributing the clamping force, reducing the risk of material pull-through and enhancing the overall strength of the joint. This is particularly advantageous in environments where vibrations or dynamic loads are present, as the robust connection minimises the chances of loosening or structural failure.

Shop Rivets At Dafra Today

Choosing the right aluminium rivet size is crucial for ensuring the integrity and longevity of your project. By considering factors such as material thickness, load requirements, and application method, you can select the optimal rivet size to meet your specific needs. Whether you are working on a small-scale DIY project or a large industrial application, Dafra offers a wide range of high-quality aluminium rivets in various sizes to suit every requirement.

For more information on aluminium rivet sizes or our extensive selection of riveting solutions, contact Dafra today. Let us help you find the perfect rivet for your next project.
