Hand Riveters vs Battery Models: When Manual Tools Still Make Sens

Battery riveters get a lot of attention, and for good reason. But a hand riveter is still the right tool for plenty of jobs, and it is not just a budget fallback. The decision between hand-powered and battery-powered tooling comes down to job volume, access to power, rivet size, cost of entry and how the tool needs to be serviced over its working life.

At Dafra, we supply both battery riveters and hand rivet guns, so we are not trying to steer you toward one category over the other. This guide walks through when a hand riveter still makes sense, when a battery model earns its keep, and how to match the tool to the job rather than the other way around.

What a Hand Riveter Actually Does

A hand riveter is a manually operated tool. You squeeze a lever or ratchet handle, and that mechanical action pulls the mandrel through the rivet body to set it. There is no motor, no battery and no compressor involved. The force comes entirely from the operator's hand and arm.

That simplicity is the whole point. A manual tool has fewer moving parts to fail, nothing to charge and nothing to plug in. Dafra's RRT5212 is a good example of what a manual tool looks like in practice: a ratchet-driven rivnut tool with a rivnut capacity of M5 to M12 in all materials, supplied as a complete kit with metric and UNC mandrels in an aluminium case. It sets rivnuts through hand pressure on the ratchet handle alone, with no power source of any kind required.

What a Battery Riveter Adds

A battery riveter replaces that hand-driven force with a motor powered by a rechargeable battery. Pull the trigger and the motor does the work that your arm would otherwise be doing. This is where speed and reduced operator effort come from.

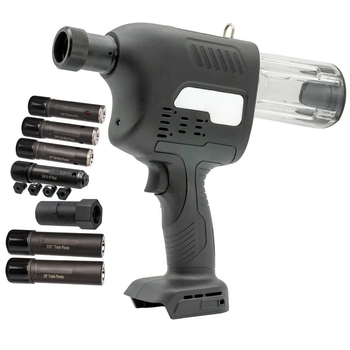

Dafra's KD-02X+ is an 18V cordless brushless blind rivet tool with a rivet capacity of 3.2mm, 4.0mm, 5.0mm, 6.0mm and 6.4mm in all materials, including structural rivets, and a stroke of 25mm. It weighs 1.9kg with the battery adaptor fitted and is rated for a service life of 100,000 cycles based on 6.4mm stainless steel blind rivets. It also takes a battery adaptor for DeWalt, Bosch, Makita or Milwaukee, chosen when you order, so the tool draws on the 18V packs already in your crew's kit. Dafra specifies a minimum of 18V and 4.0Ah, and the battery is not supplied with the tool.

That combination of motor-driven force and higher rivet capacity is why battery riveters are the standard choice for repetitive, higher-volume work.

Where a Hand Riveter Still Wins

No Power Source, No Problem

This is the clearest case for a manual tool. If you are working on a roof, in a remote paddock, on a regional Australian job site with no mains power, or somewhere a battery has no chance of being charged before you need it, a hand-powered tool simply works. It does not care whether the last charge cycle finished or whether there is a generator nearby. You bring the tool and your hand does the rest.

Low Job Volume

A few fasteners a week is a different proposition to a bench full every day, and at that volume a powered tool is hard to justify. The RRT5212 covers rivnuts from M5 to M12 with nothing to recharge and no pack losing capacity between jobs.

Lower Cost of Entry

A manual riveting tool is almost always the cheaper starting point. There is no motor, no battery pack and no charger to include in the price. That lower outlay is what suits a one-off project, an automotive workshop setting the occasional rivnut between panel jobs, or a workshop that reaches for the tool a few times a year.

Simplicity and Serviceability

Fewer parts means fewer things that can go wrong. A hand-operated tool does not have a battery that degrades, a motor that can burn out or electronics that can fail. If something does wear, such as jaws or mandrels, it is usually a straightforward fix. Dafra services and repairs our own tools along with AVDEL®, HUCK®, FAR®, POP®, GESIPA®, LOBSTER® and other pneumatic rivet, rivnut and structural tools, but a hand tool generally needs less of that attention over its life in the first place.

Where a Battery Riveter Wins

Volume and Speed

If you are setting rivets or rivnuts all day, every day, a battery riveter is the practical choice. The motor does the pulling force, not your hand, which means faster cycle times and far less physical effort per fastener across a shift.

Larger Rivet Capacity

Battery tools are generally built to handle a wider and often larger rivet range in one tool. The KD-02X+, for example, covers 3.2mm through to 6.4mm blind rivets in all materials, including structural rivets. Larger diameters and harder materials place more load on the tool, and a motor-driven pull handles that load with far less operator strain than a manual lever would.

Reduced Fatigue Over a Shift

This is one of the most practical differences between the two tool types. A manual tool asks your hand and forearm to generate every pull, rivet after rivet. Over a short job that is not an issue. Over a full shift of repetitive fastening, that manual effort adds up. A battery riveter removes most of that physical load from the operator, which matters most on production benches and repetitive assembly work.

Comparing Capacity and Power Source

Specifications vary between models, but here is what two real Dafra tools look like side by side:

• RRT5212 (hand riveter): M5 to M12 rivnuts in all materials. Ratchet operated, with no battery or charger to keep on hand.
• KD-02X+ (battery riveter): 3.2mm to 6.4mm blind rivets in all materials, including structural rivets. 18V, 1.9kg with battery adaptor, 25mm stroke, rated for 100,000 cycles on 6.4mm stainless steel blind rivets.

For blind rivets the split is real: hand tools handle the smaller diameters and occasional work, while a powered tool reaches 6.4mm structural sizes. Rivnuts follow the same logic, with the ratchet RRT5212 setting M5 to M12 by hand and the battery KD-04XL covering M4 to M12 at production volume.

Matching the Tool to the Job

Before you buy either type, work through these questions:

1. How many rivets or rivnuts will you actually set in a normal week?
2. Will the job happen somewhere with no access to mains power or a charged battery?
3. What is the largest rivet size and hardest material you expect to set regularly?
4. Is the operator doing this for a few minutes, or for a full shift?
5. What is your budget for the initial purchase, not just the ongoing running cost?
6. Who will maintain the tool, and how quickly can it be serviced if something goes wrong?

If most of your answers point to occasional use, tight budgets, remote access or straightforward serviceability, start with a hand rivet gun. If your answers point to daily volume, larger or harder fasteners, or reduced operator fatigue across a shift, a battery riveter is the more practical long-term choice.

When to Ask Dafra for Help

Some jobs are simple to call. Others are not, especially if the rivet size sits near the edge of a tool's listed capacity or the work environment changes from job to job. Ask us before you buy if:

• Your job mixes remote, no-power locations with regular production work
• You are unsure whether your rivet size and material need a hand or battery tool
• You already own battery platforms from DeWalt, Bosch, Makita or Milwaukee and want a compatible tool
• You need spare parts, nose pieces or servicing for an existing hand or battery riveter

More than 40 years of supplying rivets, rivnuts and setting tools means we have usually seen your application before, whether it is a production line running structural rivets or a single rivnut in a chassis rail. Being independently owned, we have no reason to push a battery tool at a job a ratchet tool will handle. Tell us what you are fastening and our technical team will match it to the tool that suits.

Speak to Dafra About Choosing the Right Riveter

There is no single right answer between a manual riveter and a battery model. The most compatible choice depends on how often you are riveting, where the job takes place, what size fasteners you are setting and how much physical effort you want to put in per rivet.

Browse Dafra's hand rivet guns and battery riveters ranges, or contact Dafra for practical advice on choosing the right tool for your workshop or job site.
